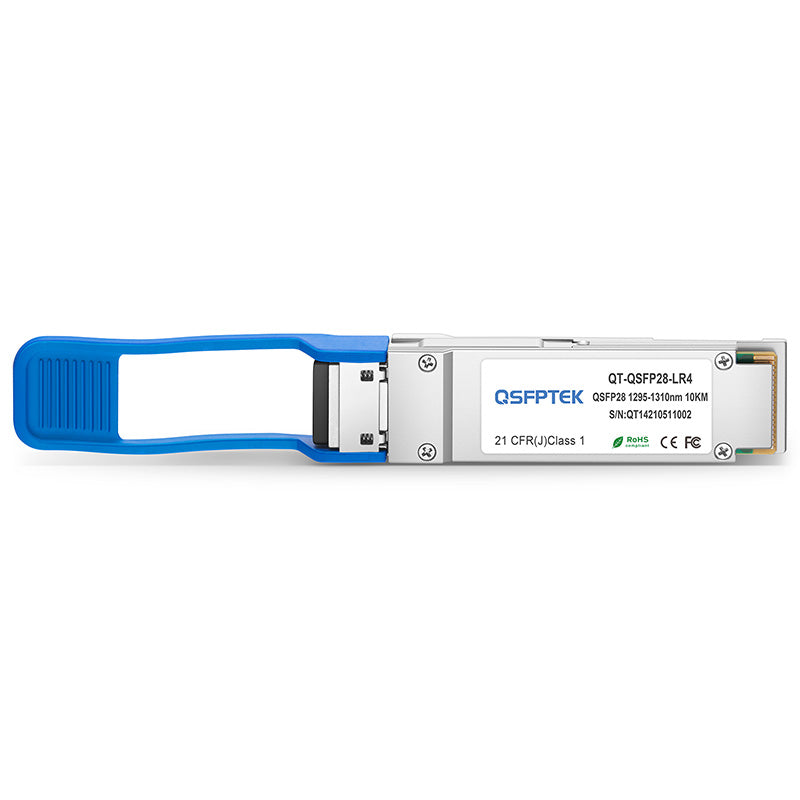

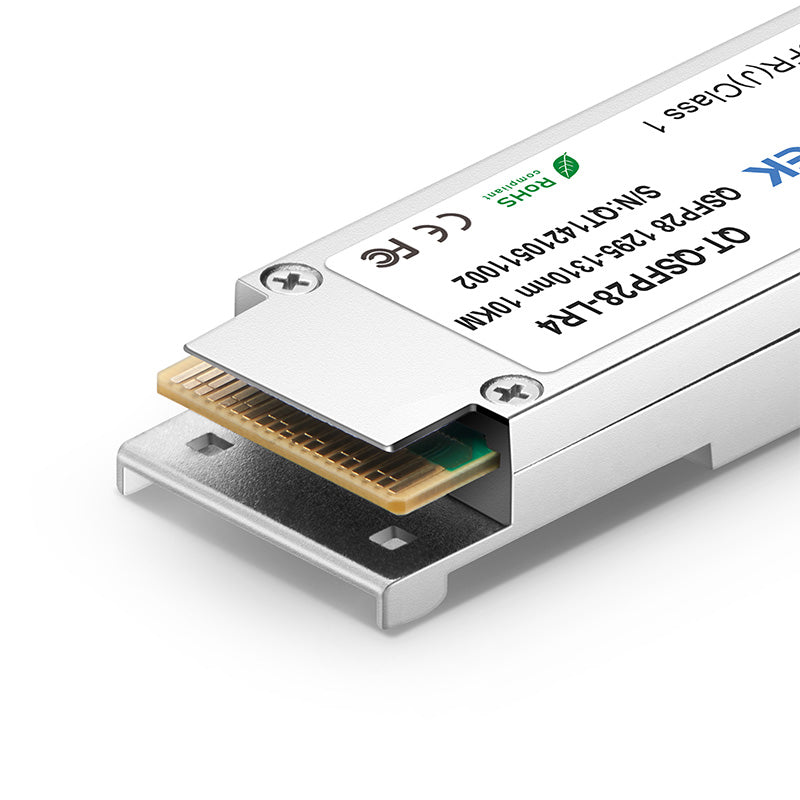

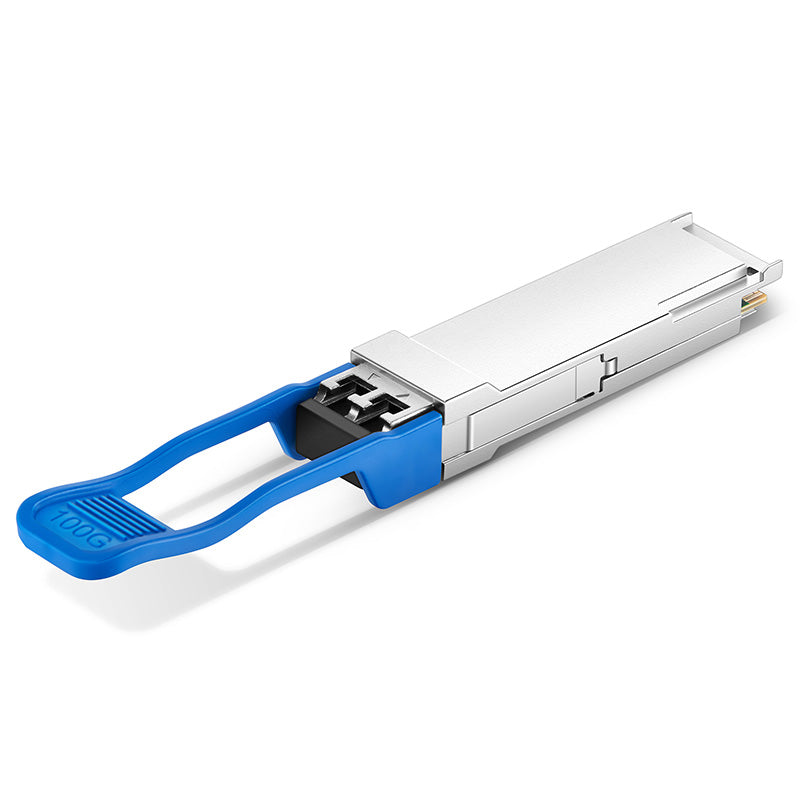

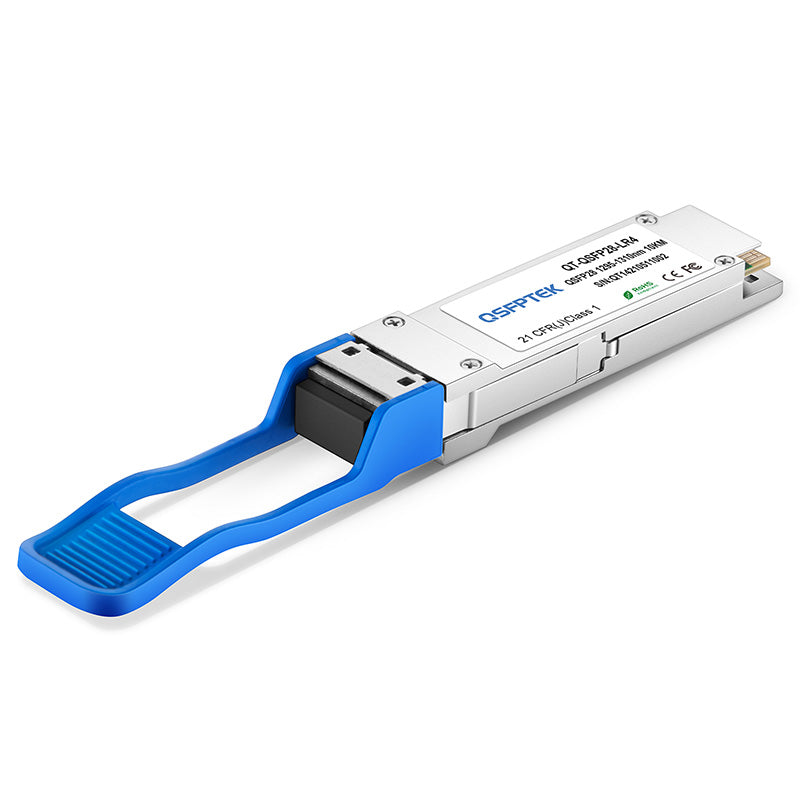

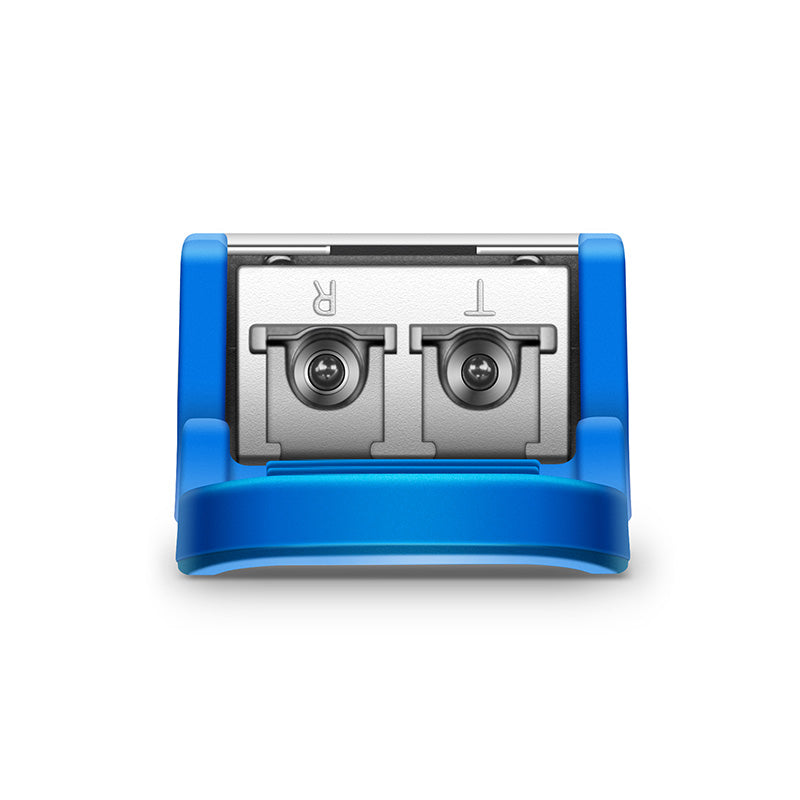

Huawei 02311KNU 100GBASE-LR4 10km 100G QSFP28 LR4 Transceiver Module
Item Spotlights:
1. 100G LC Connector with Digital Diagnostic Monitoring
2. IEEE 802.3bm Electrical Interface; Power Consumption ≤3.5W
3. Hot Pluggable QSFP28 MSA Compliant
4. 4x LAN WDM DML (DFB)+PIN for Campus Network, Data Center interconnect, and Enterprise Core Layer
5. Compliant with High-Level FDA Laser Safe
Free Shipping
Free standard shipping on orders over $84.9
Estimated to arrive in 4 business days.
Free Returns
Learn More.
Caution
Covid-19 Shipping Delay Notice
Huawei 02311KNU Compatible 100GBASE-LR4 QSFP28 Optical Transceiver Module (SMF, 1310nm, 10km, LC, DDM)
Huawei compatible 02311KNU QSFP28 optical transceiver modules from QSFPTEK equipped with LC duplex connectors that can transmit 10km through SMF OS2 fiber optic cable. This 100GBASE-LR4 transceiver complies with QSFP28 MSA. The module is equipped with an DFB laser and APD receiver. With these features, this hot-swappable transceiver is suitable for campus networks and data center.
Specification
Part Number: | QSFP28-100G-LR4 | Vendor Name: | QSFPTEK |
Form Factor: | QSFP28 | Data Rate: | 103.125Gbps (4x 25.78Gbps) |
Wavelength: | 1295~1310nm | Distance: | 10km@G.652 |
Connector: | Duplex LC | Cable Type: | OS2 SMF |
Transmitter: | 4x LAN WDM DML (DFB) | Receiver Type: | PIN |
TX Power: | -4.3~4.5dBm | Receiver Sensitivity: | <-10.6dBm |
Power Consumption: | ≤3.5W | Modulation Format: | NRZ |
DDM: | Support | Bit Error Ratio (BER): | 1.00E-12 |
Protocols: I | IEEE 802.3ba 100GBASE-LR4, IEEE 802.3bm, QSFP28 MSA, SFF-8665, SFF-8636 | Warranty: | 3 Years |
Connectivity Guide
100GBASE-LR4 QSFP28 transceiver is used to connect 100GbE switches.
