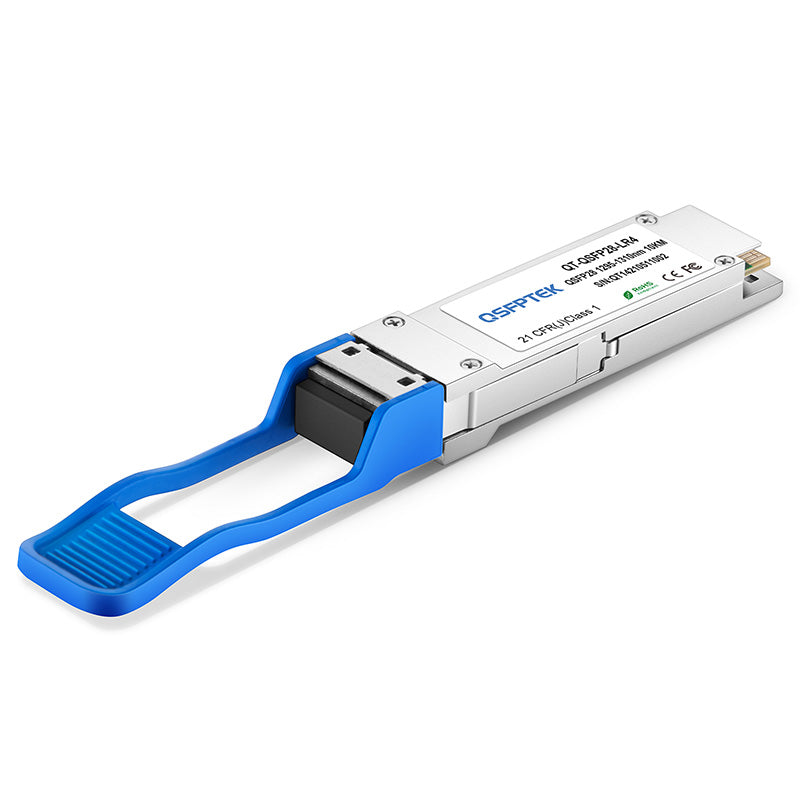

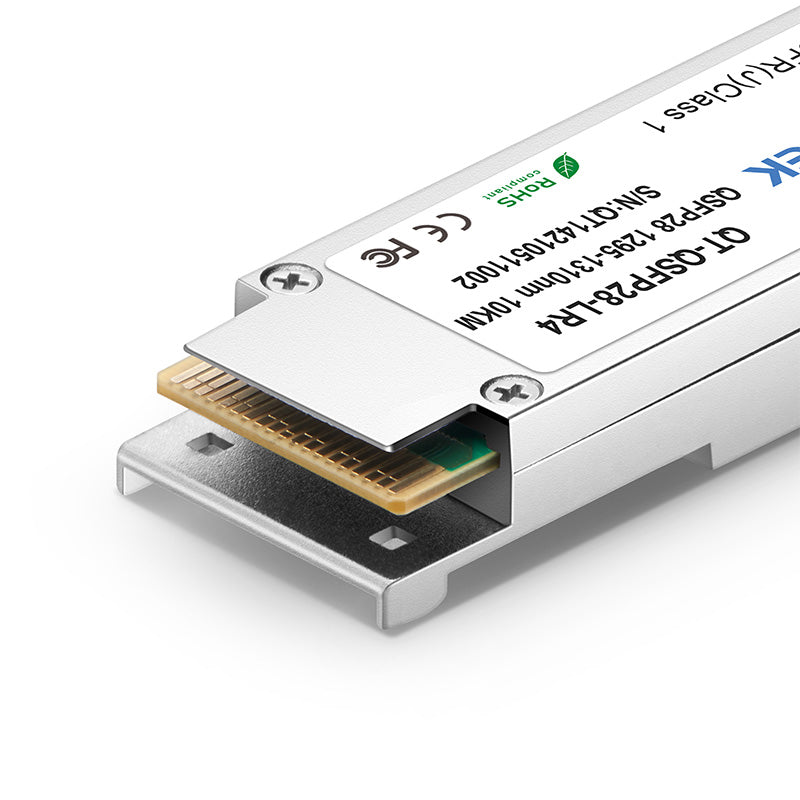

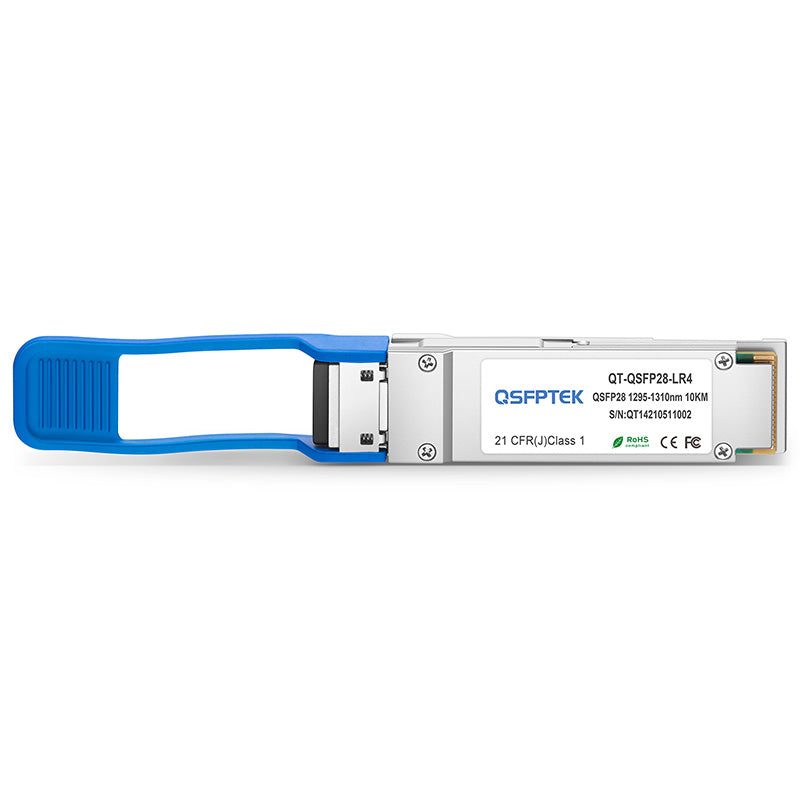

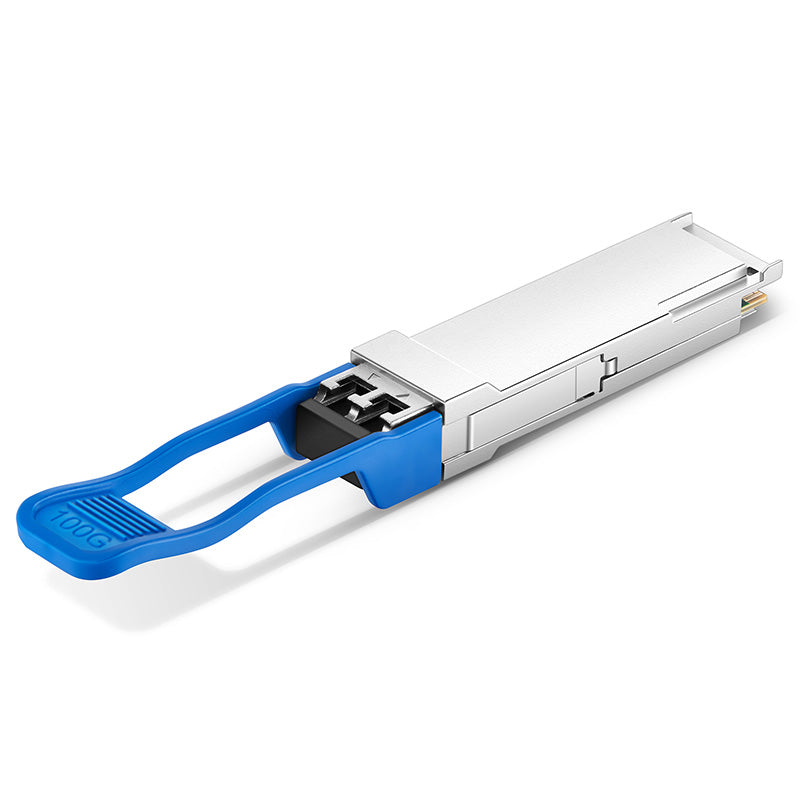

H3C QSFP-100G-LR4-WDM1300 100GBASE-LR4 10km 100G QSFP28 LR4 Transceiver Module
Item Spotlights:
1. 100G LC Connector with Digital Diagnostic Monitoring
2. IEEE 802.3bm Electrical Interface; Power Consumption ≤3.5W
3. Hot Pluggable QSFP28 MSA Compliant
4. 4x LAN WDM DML (DFB)+PIN for Campus Network, Data Center interconnect, and Enterprise Core Layer
5. Compliant with High-Level FDA Laser Safe
Free Shipping
Free standard shipping on orders over $84.9
Estimated to arrive in 4 business days.
Free Returns
Learn More.
Caution
Covid-19 Shipping Delay Notice
H3C QSFP-100G-LR4-WDM1300 Compatible 100GBASE-LR4 QSFP28 Optical Transceiver Module (SMF, 1310nm, 10km, LC, DDM)
H3C compatible QSFP-100G-LR4-WDM1300 optical transceiver modules from QSFPTEK equipped with LC duplex connectors that can transmit 10km through SMF OS2 fiber optic cable. This 100GBASE-LR4 transceiver complies with QSFP28 MSA. The module is equipped with an DFB laser and APD receiver. With these features, this hot-swappable transceiver is suitable for campus networks and data center.
Part Number: | QT-QSFP28-LR4 | Vendor Name: | QSFPTEK |
Form Factor: | QSFP28 | Data Rate: | 103.125Gbps (4x 25.78Gbps) |
Wavelength: | 1295~1310nm | Distance: | 10km@G.652 |
Connector: | Duplex LC | Cable Type: | OS2 SMF |
Transmitter: | 4x LAN WDM DML (DFB) | Receiver Type: | PIN |
TX Power: | -4.3~4.5dBm | Receiver Sensitivity: | <-10.6dBm |
Power Consumption: | ≤3.5W | Modulation Format: | NRZ |
DDM: | Support | Bit Error Ratio (BER): | 1E-12 (without FEC) |
Protocols: | IEEE 802.3ba, IEEE 802.3bm, SFF-8665, SFF-8636, 100G CWDM4 MSA, QSFP28 MSA | Warranty: | 3 Years |
