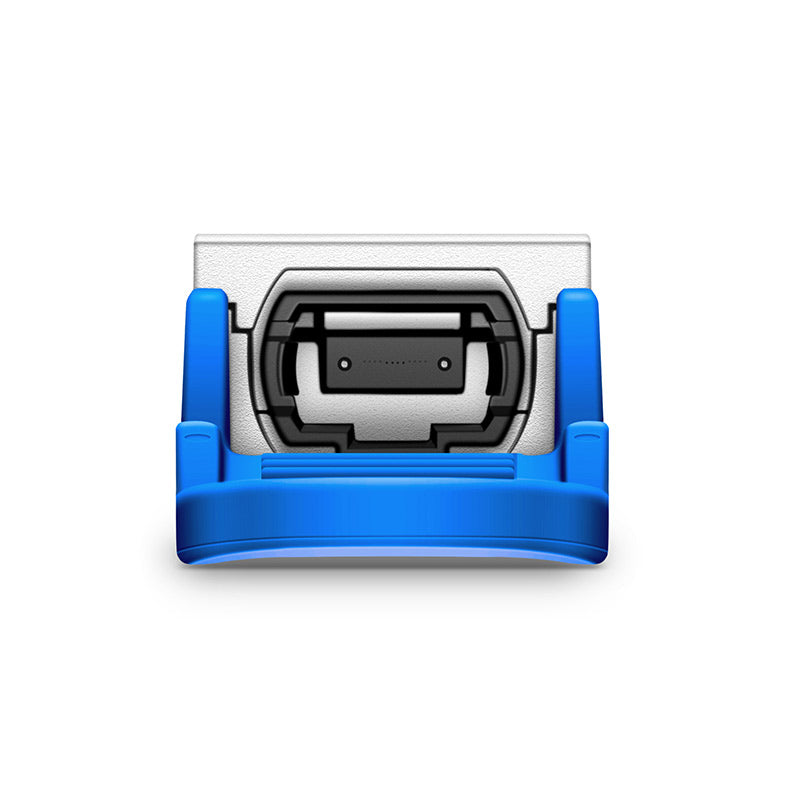

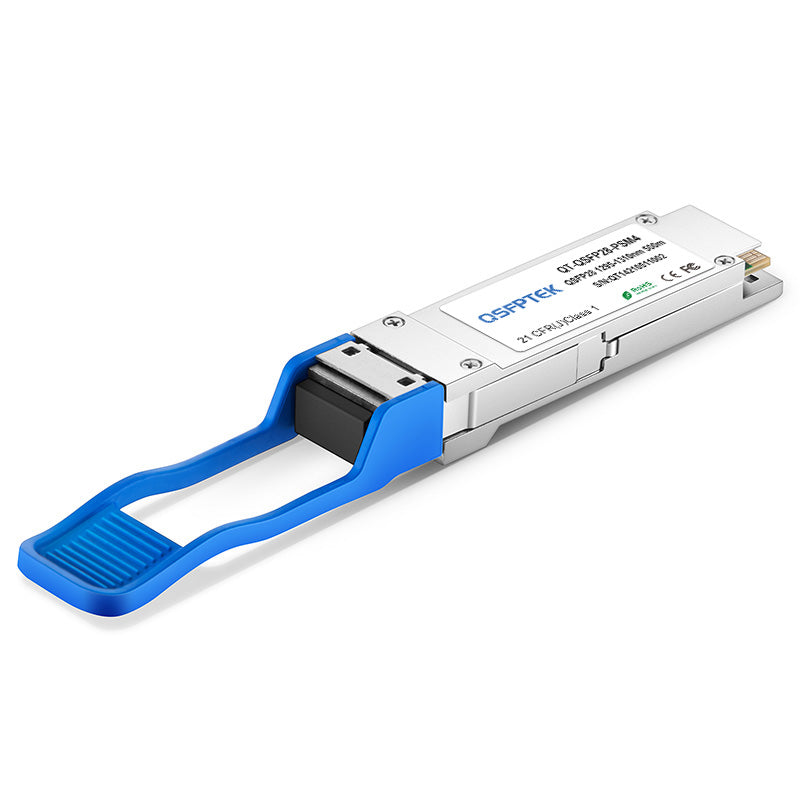

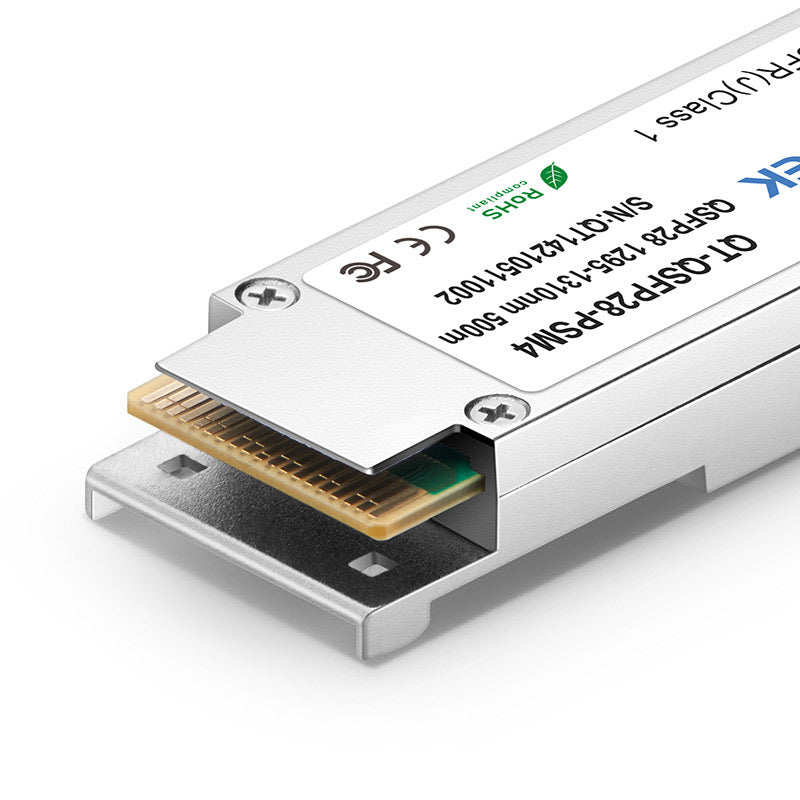

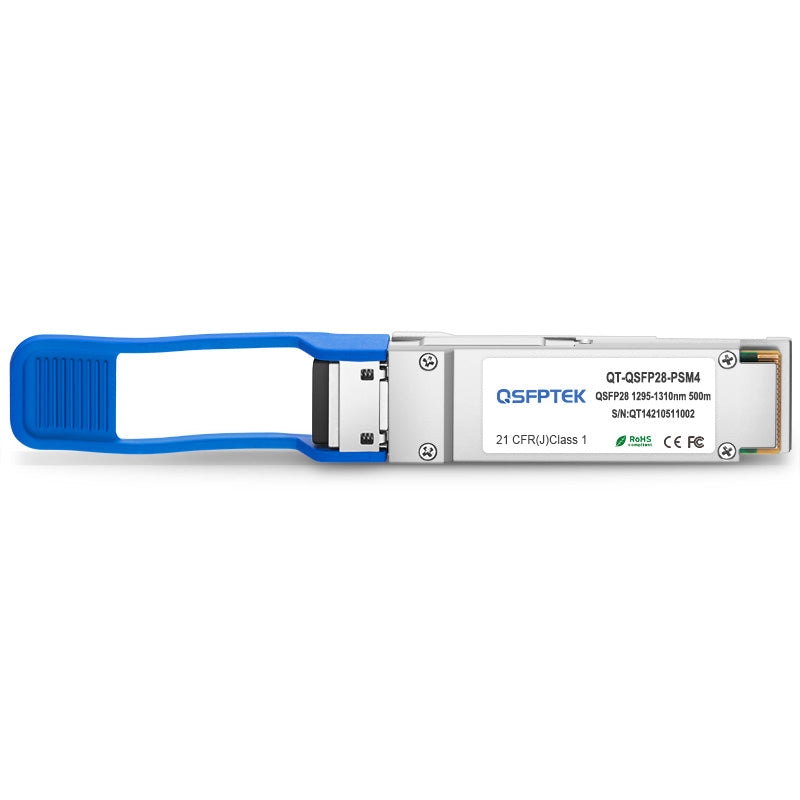

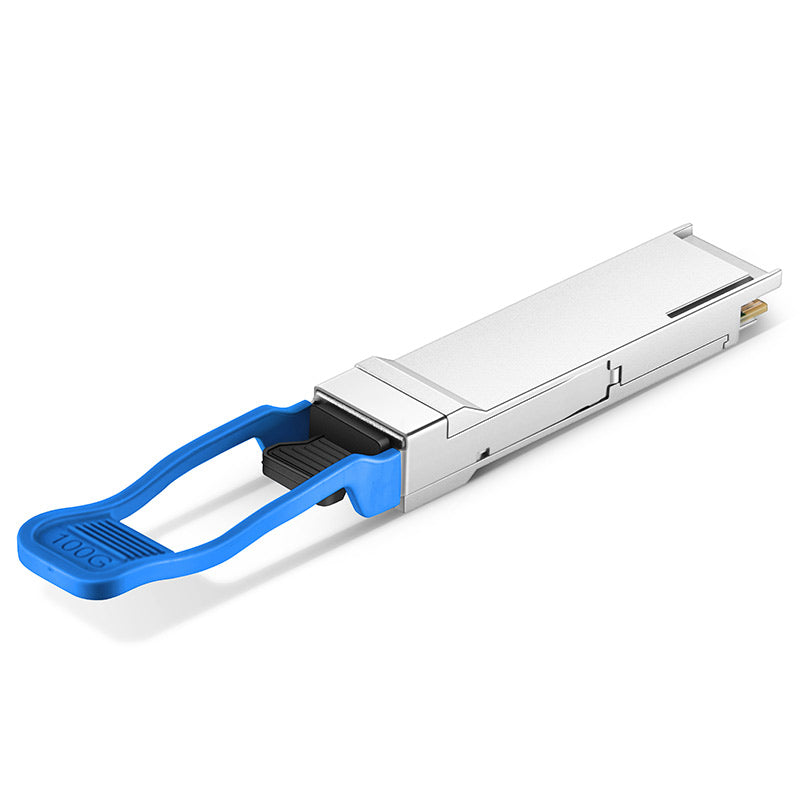

Cisco QSFP-100G-PSM4-S 100GBASE-PSM4 500m 100G QSFP28 Transceiver Module
Item Spotlights:
1. Data Rate: 103.125 Gbps.
2. Up to 500m via single-mode OS2.
3. MTP/MPO connector.
4. Low power consumption <3.5W.
5. Multi-vendor compatibile.
Free Shipping
Free standard shipping on orders over $84.9
Estimated to arrive in 4 business days.
Free Returns
Learn More.
Caution
Covid-19 Shipping Delay Notice
Cisco QSFP-100G-PSM4-S Compatible 100GBASE-PSM4 QSFP28 Optical Transceiver Module (SMF 1310nm 500m DOM MTP/MPO)
Cisco compatible QSFP-100GPSM4-S QSFP28 optical transceiver modules from QSFPTEK equipped with MTP/MPO-12 connectors that can transmit 2km through SMF OS2 fiber optic patch cords. This 100GBASE-PSM4 transceiver complies with QSFP28MSA and SFF-8636. The module has 4 parallel transmission channels of 25Gbps, with a wavelength range of 1294nm~1310nm. With these features, this hot-swappable transceiver is suitable for various applications such as data center TOR architecture, enterprise core and distribution layer applications, campus networks.
Model Name | QT-QSFP28-PSM4 | Vendor Name | QSFPTEK |
Form Factor | QSFP28 | Data Rate | 100 Gbps |
Wavelength | 1310nm | Distance | 500m |
Connector | MTP/MPO-12 Male | Cable Type | OS2 SMF |
Transmitter Type | 4xDFB | Receiver Type | PIN |
TX Power | -5~2dBm | Receiver Sensitivity | <-11.4dBm |
Power Consumption | <3.5W | Modulation Format | NRZ |
DDM | Support | Bit Error Ratio (BER) | 1.00E-12 |
Protocols | IEEE 802.3bm, QSFP28 MSA, SFF-8665, SFF-8636, CPRI, eCPRI | Warranty | 3 Years |
