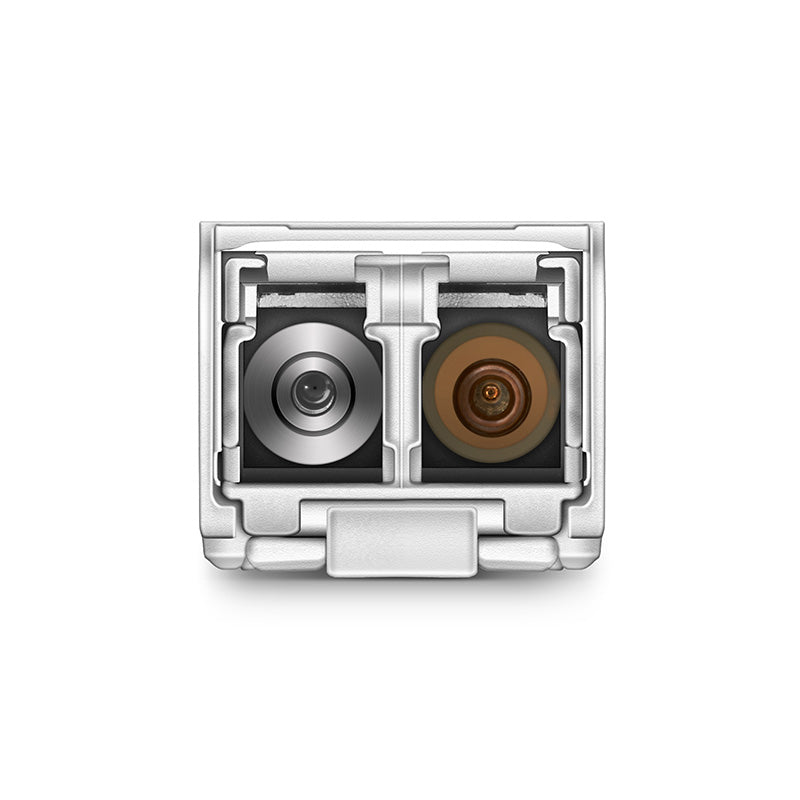

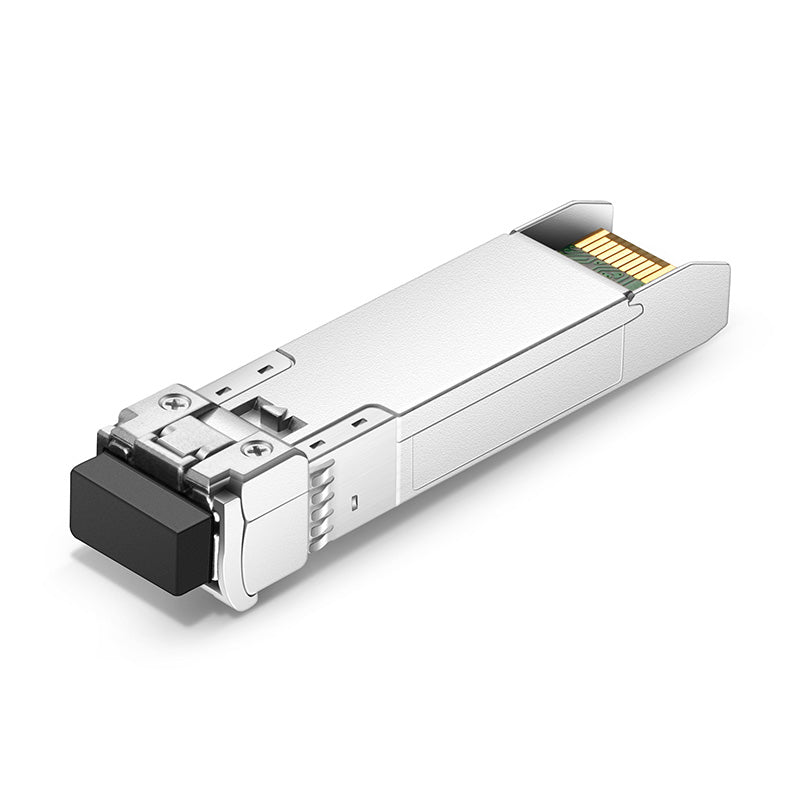

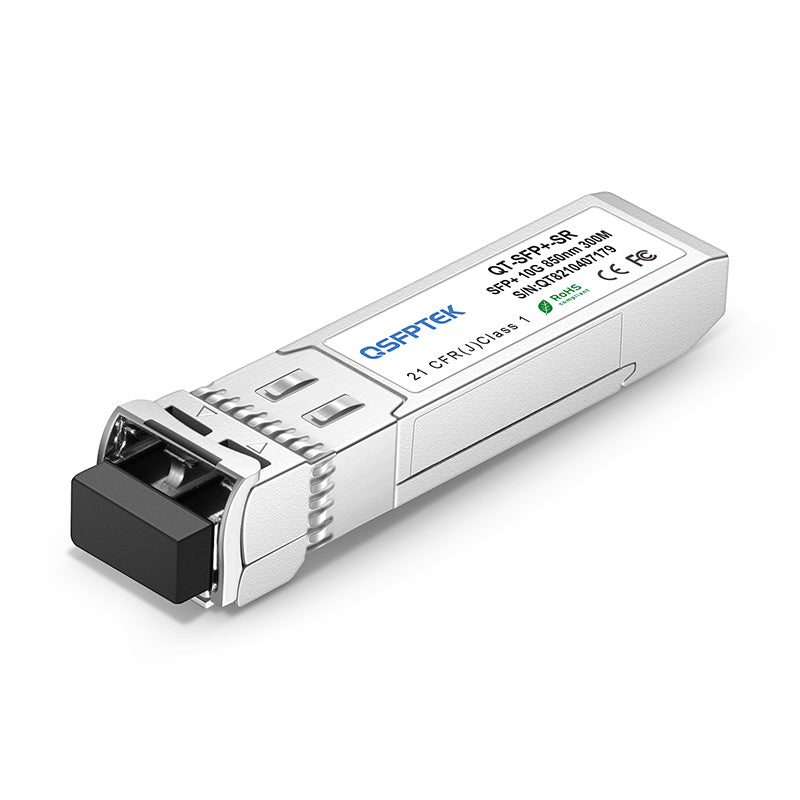

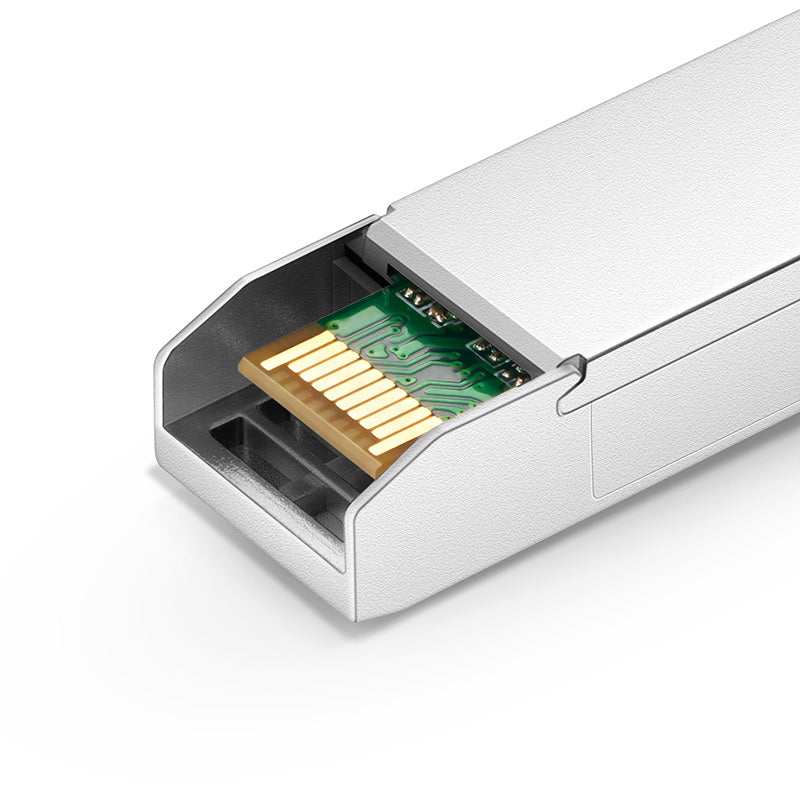

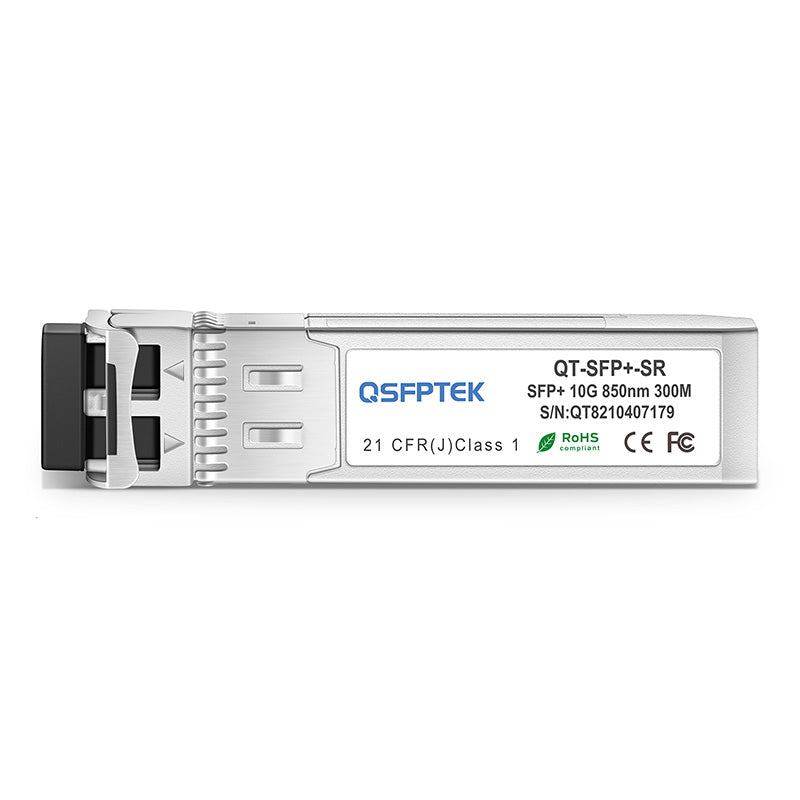

HPE ProCurve J9150A Compatible 10GBASE-SR SFP+ 850nm 300m DDM LC MMF Transceiver Module
Item Spotlights:
1. Data Rate: 1.25-10.31 Gbps.
2. Up to 300m via multimode OM3.
3. Duplex LC connector.
4. Low power consumption <0.8W.
5. Multi-vendor compatibile.
Free Shipping
Free standard shipping on orders over $84.9
Estimated to arrive in 4 business days.
Free Returns
Learn More.
Caution
Covid-19 Shipping Delay Notice
HPE J9150A Compatible 10GBASE-SR SFP+ Transceiver Module (MMF, 850nm, 300m, LC, DOM)
HPE ProCurve compatible J9150A SFP+ transceivers from QSFPTEK feature LC duplex connectors and support link lengths up to 400m on OM4 MMF (300m on OM3 MMF). The transceiver is SFP+ MSA and IEEE 802.3ae compliant. Equipped with digital diagnostic monitoring, it can monitor the real-time temperature, voltage, current, and TX/RX power parameters of the module, and has an alarm function. This 10GBASE-SR SFP+ transceiver features low power consumption, ideal for data centers, enterprise networks, and campus networks.
Model Name | SFP-10G-SR | Vendor Name | QSFPTEK |
Form Factor | SFP+ | Data Rate | 10Gbps |
Wavelength | 850nm | Distance | 300m@OM4 |
Connector | LC Duplex | Cable Type | OM3/OM4 MMF |
Transmitter Type | VCSEL | Receiver Type | PIN |
TX Power | -6.5~-0.5dBm | Receiver Sensitivity | <-11.1dBm |
Power Consumption | <0.8W | Modulation Format | NRZ |
DDM | Support | Bit Error Ratio (BER) | 1.00E-12 |
Protocols | IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432 | Warranty | 3 Years |
