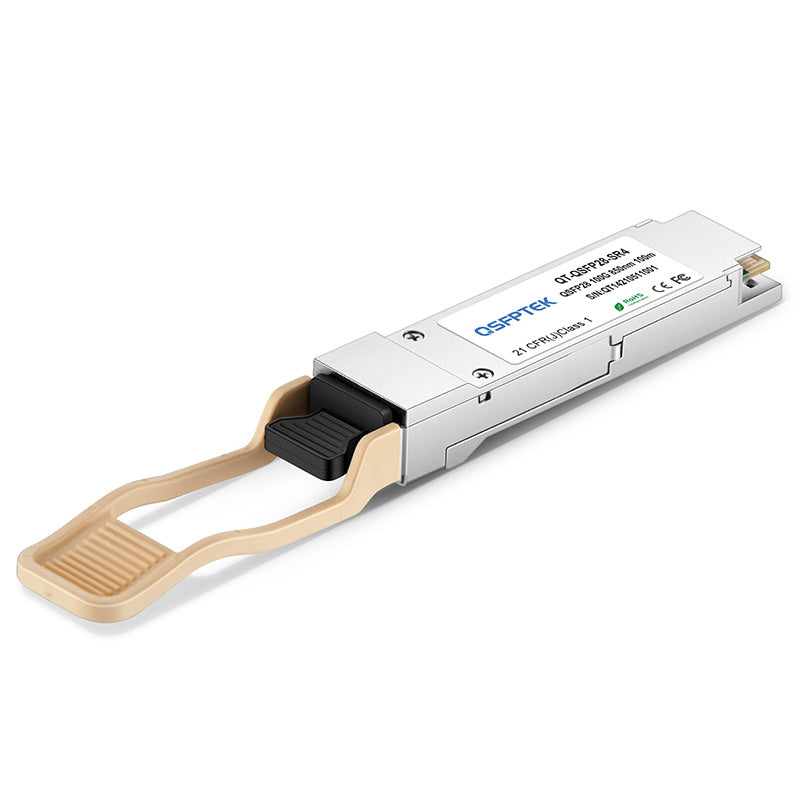

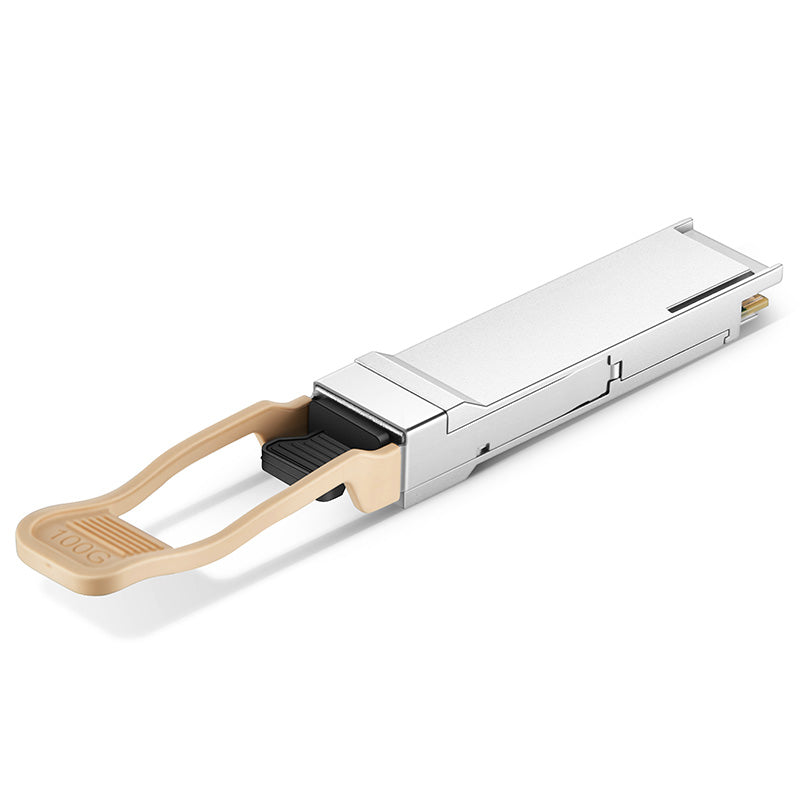

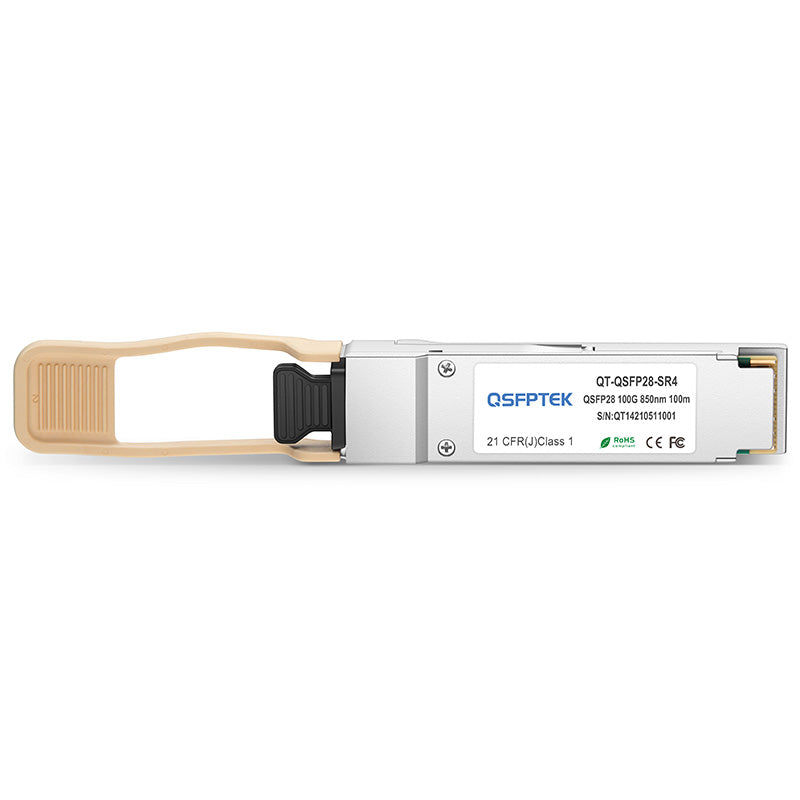

Dell QSFP28-100G-SR4 100GBASE-SR4 100m 100G QSFP28 SR4 Transceiver Module
Item Spotlights:

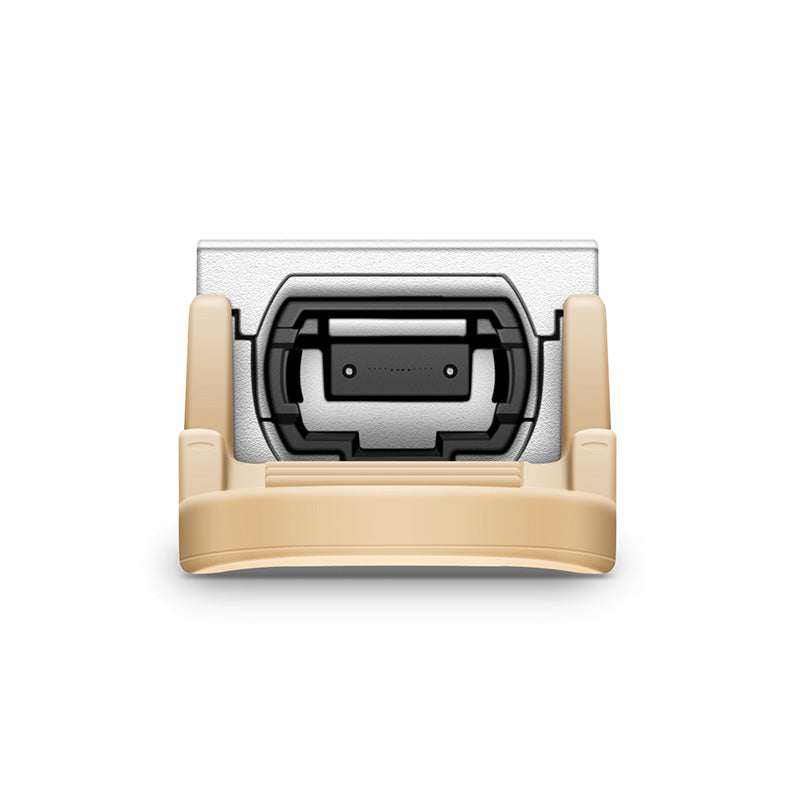

1. 100G MTP/MPO Connector with Digital Diagnostic Monitoring
2. IEEE 802.3bm Electrical Interface; Power Consumption ≤1.8W
3. Hot Pluggable QSFP28 MSA Compliant
4. VASEL+PIN for Campus Network, Data Center interconnect, and Enterprise Core Layer
5. Compliant with High-Level FDA Laser Safe
Free Shipping
Free standard shipping on orders over $84.9
Estimated to arrive in 4 business days.
Free Returns
Learn More.
Caution
Covid-19 Shipping Delay Notice
Dell QSFP28-100G-SR4 Compatible 100GBASE-SR4 QSFP28 Optical Transceiver Module (MMF, 850nm, 100m, MTP/MPO, DDM)
Dell compatible QSFP28-100G-SR4 QSFP28 optical transceiver modules from QSFPTEK equipped with MTP/MPO-12 connectors that can transmit 100m through MMF OM4 fiber optic patch cords. This 100GBASE-SR4 transceiver complies with IEEE 802.3bm 100GBASE-SR4 and CAUI-4 standards. The module has 4 parallel transmission channels of 25Gbps, with a wavelength range of 840nm~860nm and a center wavelength of 850nm. With these features, this hot-swappable transceiver is suitable for various applications such as data center TOR architecture, enterprise core and distribution layer applications, campus networks.
Specification
Part Number: |
QSFP28-100G-SR4 |
Vendor Name: |
QSFPTEK |
Form Factor: |
QSFP28 |
Data Rate: |
100Gbps |
Wavelength: |
850nm |
Distance: |
100m@OM4/70m@OM3 |
Connector: |
MTP/MPO-12 Male |
Cable Type: |
OM4/OM3 MMF |
Transmitter: |
VCSEL 850nm |
Receiver Type: |
PIN |
TX Power: |
-7~1dBm |
Receiver Sensitivity: |
<-9.5dBm |
Power Consumption: |
P≤1.8W |
Modulation Format: |
NRZ |
DDM: |
Support |
Bit Error Ratio (BER): |
1.00E-12 |
Protocols: I |
EEE 802.3bm, QSFP28 MSA, SFF-8665, SFF-8636, CPRI, eCPRI |
Warranty: |
3 Years |
Connectivity Guide
100GBASE-SR4 QSFP28 transceiver is used to 100GbE switches.
